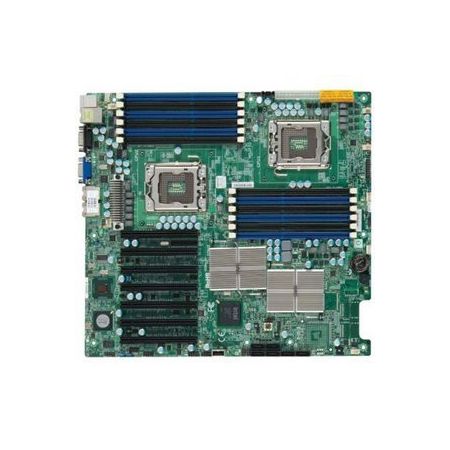

Supermicro X8DTH-iF Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - Retail Pack Item # 987778
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
987778
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
This X8DTH-iF Server Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. X8DTH-iF supports the Intel 5500 Series Processor, the first dual-processor platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.
Product Details
| Item # | 987778 |
| Manufacturer # | 10549460 |
| Additional Connectors (Optional) | 4 x USB 2.0 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 2 |
| Hardware Features | Chassis intrusion detection, Intel QuickPath Architecture |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 4 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 5; 1+0 |
| Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
| Processor Supported | Xeon Dual-Core; Xeon Quad-core |
| BIOS Features | IPMI support, ACPI 3.0 support |
| Additional Information | System BIOS:32Mb SPI Flash EEPROM with AMI BIOS; Plug and Play (PnP); PCI 2.2; ACPI Up to 3.0; USB Keyboard support |
| Compatible Processors | Quad-Core Xeon 5500 series |
| Total Number of USB Ports | 4 |
| BIOS Type | AMI |
| Serial Port | Yes |
| Internal Interfaces | 1 x floppy |
| Graphics Controller Manufacturer | Matrox |
| Registered or Buffered | Registered, unbuffered |
| width | 12 in |
| package contents | X8DTH-iF Server Board; 6 x 57.5cm SATA Flat S-S PBF; 1 x USB 2.0 2-Port W/Key, 15.7"L, PB Free; 1 x 9-Pin Serial Port DTK Cable, LF; 1 x ATX Floppy Cable 3 Headers PB Free; 1 x Support Disc; 1 x I/O Shield; 1 x User Manual |
| Number of Memory Slots | 12 |
| Storage Interfaces | Intel ICH10R : SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| depth | 13 in |
| Product Name | X8DTH-iF Server Motherboard |
| Total Processor Supported | 2 |
| Total Number of PCI Express Slots | 7 |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Data Bus Transfer Rate | 6.4 GT/s |
| Bus Clock | 1333 MHz, 1066 MHz, 800 MHz |
| VGA | Yes |
| Max Processors Qty | 2 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Max Size | 192 GB |
| Maximum Memory | 96 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
| controller type | Serial ATA/300 |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Gigabit Ethernet | Yes |
| Network Controller | Intel 82576 |
| Processor Technology | Enhanced SpeedStep Technology |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 4 |
| Graphics Controller | Matrox G200eW |
| Package Type | Retail |
| PS/2 Port | Yes |
| Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Number of Total Expansion Slots | 8 |
| Processor Socket | LGA1366 Socket |
| Chipset Model | 5520 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Extended ATX |
| Memory Technology | DDR3 SDRAM |
| Onboard Video | On-board Video Chipset |
| model name | X8DTH-iF |
| QuickPath Interconnect | 6.40 GT/s |
| Number of PCI Express x8 Slots | 7 |
